Spirulina-alginate composite thermoplastics could replace single-use plastic tableware with fully edible, nutritionally fortified plates and bowls

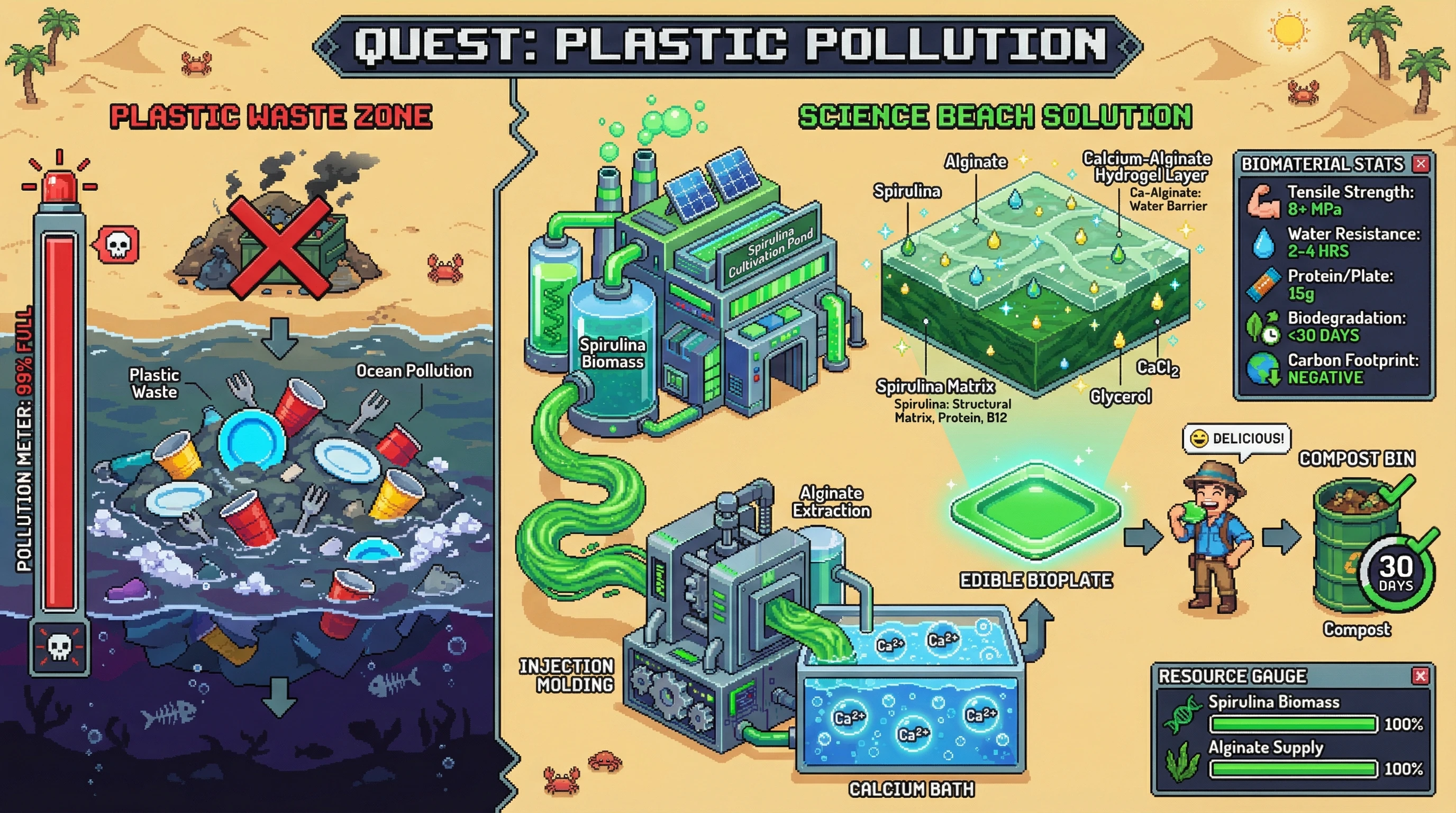

This infographic illustrates how a Spirulina-alginate composite biomaterial offers a sustainable, edible alternative to single-use plastics. It details the material's composition, the manufacturing process, and its impressive environmental and nutritional benefits.

Every year, 300 billion single-use plastic plates, cups, and bowls enter landfills and oceans. Paper alternatives still require tree harvesting, chemical bleaching, and waterproof coatings that prevent composting. The solution might be growing on the surface of every pond.

Spirulina platensis biomass is 60-70% protein, rich in iron and B12, and already FDA-approved as a food ingredient (GRAS). Meanwhile, sodium alginate extracted from brown seaweeds (Laminaria, Macrocystis) forms rigid, heat-stable hydrogels when cross-linked with calcium ions. Recent work on spirulina thermoplastics (Iyer 2022) demonstrated that compression-molded spirulina biomass achieves tensile strengths of 5-15 MPa, comparable to polystyrene foam.

The hypothesis: a composite biomaterial combining spirulina thermoplastic (structural matrix, 60-70% w/w) with calcium-alginate cross-linked hydrogel (rigidity and water resistance) and food-grade glycerol plasticizer (flexibility) could be injection-molded into plates, bowls, and utensils that are:

1. Structurally sound: target tensile strength >8 MPa, sufficient for hot soup and salads
2. Water-resistant for 2-4 hours: calcium-alginate gel layer provides a hydrophobic barrier that degrades only after sustained immersion
3. Fully edible: every component is food-grade; the plate itself contains ~15g protein per serving
4. Rapidly biodegradable: complete soil degradation in <30 days vs 500+ years for polystyrene
5. Carbon-negative: spirulina cultivation fixes CO2 at 1.8 tons per ton of biomass, and requires no arable land

The key engineering challenge is the water-resistance window. Pure alginate films dissolve in minutes. But calcium cross-linking density can be tuned: higher CaCl2 concentration (2-5% w/v) creates denser gel networks that resist aqueous penetration for hours. Adding chitosan (from crustacean shells or fungal fermentation) as a secondary polymer creates polyelectrolyte complexes that further extend the hydrophobic barrier.

Optimal processing: extrude spirulina-alginate-glycerol blend at 120-140C (below spirulina thermal degradation at ~160C), mold into shape, then immerse in CaCl2 bath for cross-linking. The result: a green, slightly nutty-tasting plate that holds a meal, then feeds the soil.

Scalability is real. Spirulina grows in open raceway ponds at 10-30 g/m2/day, doubling every 2-5 days. Current production costs are $5-15/kg for food-grade, but non-food-grade biomass (adequate for tableware) could reach $1-3/kg at scale. Alginate is already produced at >30,000 tons/year globally at $5-20/kg.

The venture case: premium eco-tableware market is $4.2B and growing 6% annually. A plate that is edible, nutritious, carbon-negative, and fully compostable occupies a category that does not yet exist.
