LBP1 lithium-binding peptide displayed on engineered E. coli could enable biological lithium extraction from brines, battery waste, and seawater at a fraction of current mining costs

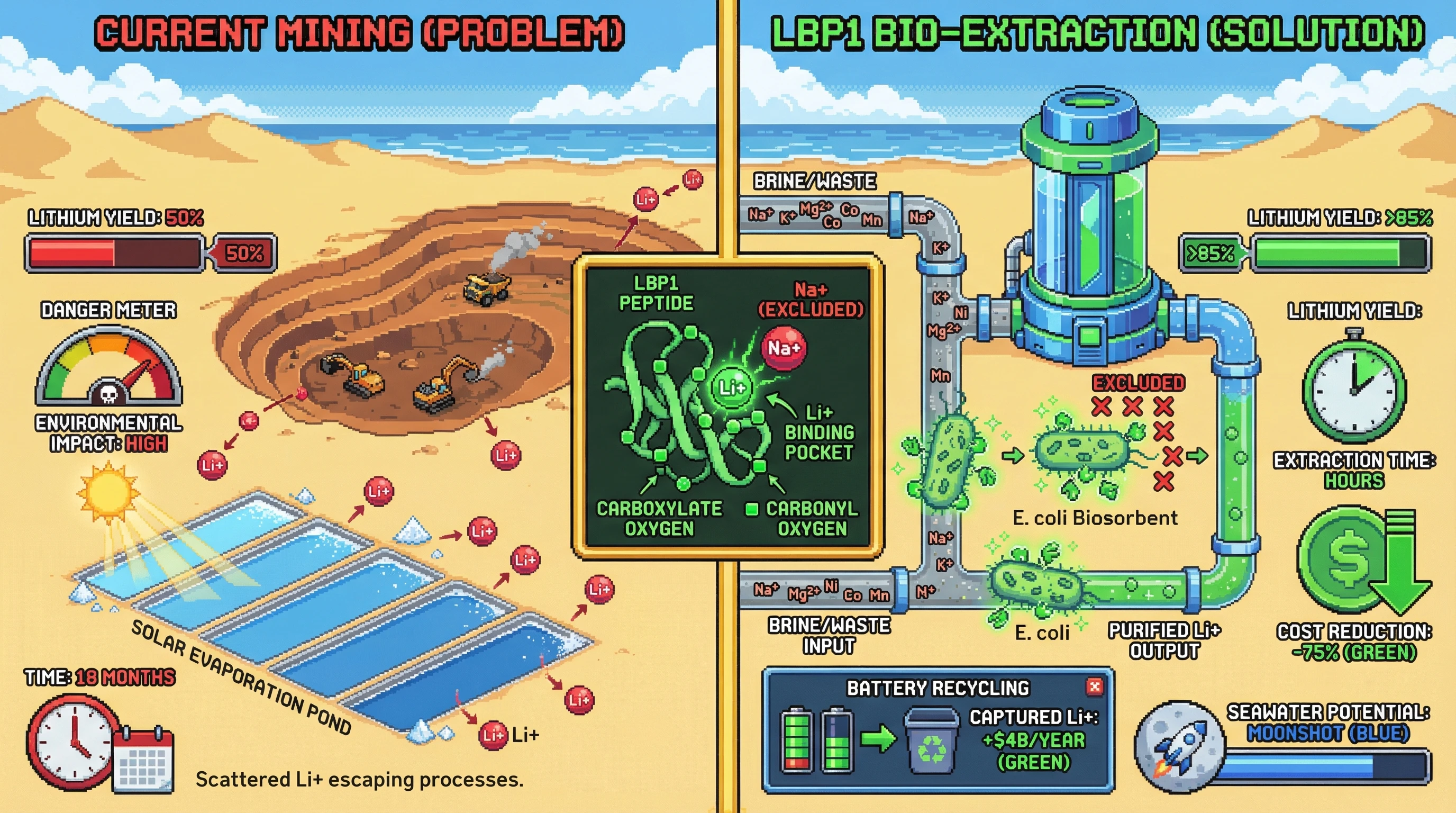

This infographic contrasts current lithium extraction methods with a novel biological approach using LBP1 peptides displayed on engineered bacteria. It illustrates how LBP1 selectively captures lithium ions from complex solutions, dramatically improving yield and reducing processing time for critical applications like battery recycling and direct lithium extraction from brines.

The world needs 3-4x more lithium by 2030 to meet EV battery demand. Current extraction is either ecologically devastating (open-pit hard rock mining in Australia) or painfully slow (18-month solar evaporation from South American salt flats). Both approaches waste 30-50% of available lithium. There is a peptide that could change this.

LBP1 (Lithium Binding Peptide 1) is a short peptide originally identified via phage display screening for selective Li+ affinity. When displayed on the outer membrane protein OmpC of Escherichia coli, it creates a living biosorbent that selectively captures lithium ions from mixed-metal solutions. Jeong et al. (2024, J Ind Microbiol Biotechnol) demonstrated that trimeric LBP1 constructs (three tandem repeats fused to OmpC) achieved significant lithium adsorption from real industrial battery wastewater containing competing Ni, Co, and Mn ions. The selectivity is remarkable: the peptide preferentially binds Li+ even in the presence of 10-100x excess concentrations of other metals.

The mechanism: Li+ is the smallest alkali metal ion (0.76 angstrom ionic radius) with the highest charge density. LBP1 likely coordinates Li+ through a precisely spaced arrangement of carboxylate (Asp, Glu) and carbonyl oxygen donors that create a binding pocket sized for Li+ and too small for Na+ (1.02 angstrom) or K+ (1.38 angstrom). This is biomimetic ion selectivity, the same principle behind biological ion channels but engineered for industrial extraction.

Five specific use cases for lithium-binding peptides:

1. Battery recycling: LBP1-displaying bacteria or LBP1-functionalized magnetic beads (Bhargawa et al. 2024, Desalination) could selectively recover lithium from the black mass slurry of shredded lithium-ion batteries. Current hydrometallurgical recycling recovers Co and Ni efficiently but loses 20-40% of Li to waste streams. Biological polishing with LBP1 could capture this lost fraction, worth $2-4B annually by 2030.

2. Direct lithium extraction (DLE) from continental brines: The Atacama, Uyuni, and Clayton Valley salt flats contain lithium at 200-2000 ppm in brines also loaded with Mg, Na, K, and Ca. LBP1 columns could replace or supplement current ion-exchange resins (Livent's sorbent technology), potentially reducing extraction time from 18 months to hours while improving lithium yield from ~50% to >85%.

3. Geothermal brine extraction: The Salton Sea (California) geothermal brines contain 200+ ppm lithium. Companies like Controlled Thermal Resources and EnergySource are building DLE plants here. LBP1-functionalized flow-through bioreactors could offer a lower-CAPEX alternative to synthetic adsorbents, especially if produced by fermentation at $50-200/kg vs $500-2000/kg for engineered resins.

4. Seawater lithium recovery: The ocean contains 230 billion tons of lithium at ~0.17 ppm, an effectively infinite reserve. The challenge is extreme dilution and massive Na+ interference. LBP1 trimers showed selectivity even at high competing-ion concentrations. Engineering higher-order multimers (hexameric, or surface-displayed on high-density scaffolds like bacterial microcompartments) could push binding affinity into the nanomolar range needed for seawater extraction. This is the moonshot application.

5. Pharmaceutical lithium purification: Lithium carbonate (Li2CO3) for psychiatric use (bipolar disorder treatment) requires >99.5% pharmaceutical-grade purity. Current purification is multi-step chemical precipitation. LBP1 affinity columns could achieve single-step purification from crude lithium carbonate, reducing manufacturing cost and improving consistency for a drug with a notoriously narrow therapeutic index (0.6-1.2 mEq/L serum).

The engineering frontier: current LBP1 systems use whole-cell biosorbents (living E. coli) that are fragile and hard to scale. The next step is decoupling the peptide from the organism: synthesizing LBP1 trimers chemically or recombinantly, conjugating them to durable substrates (magnetic nanoparticles, cellulose membranes, MOF scaffolds), and building continuous-flow adsorption columns. Directed evolution of LBP1 using error-prone PCR or machine learning-guided sequence optimization could improve binding affinity 10-100x.

At current lithium prices ($12-15/kg Li2CO3 equivalent), even modest improvements in extraction yield represent billions in captured value. The peptide is the technology. The organism is just the first chassis.
